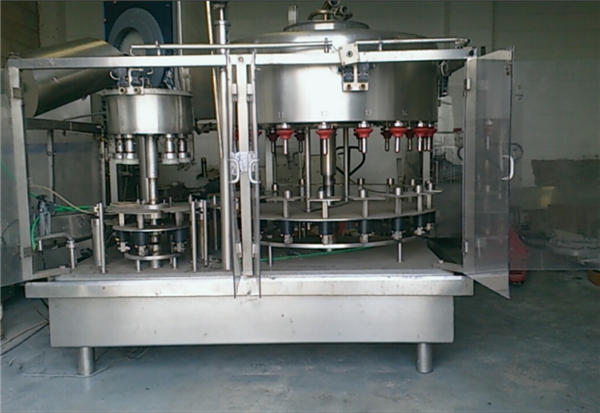

آلة تعبئة زجاجات العطور ذات الضغط السلبي بـ 10 رؤوس

مواصفات
1.With PLC/touch screen
2.Easy to operate
3.High automatic level
4.Suitable for filling bubble liquid
5.High efficiency

The machine name: 10-head Negative-pressure perfume bottle filling machine

مقدمة من الجهاز

---

This series filler combines light, electricity,gas and PLC microcomputer control together, and completes these jobs including positioning the bottle, filling and sedning out bottles automatically. The filling process is finishded in a way of using straight-into filling, and the different measures is done by changing filling time. It is unnecessary to replace any elements when you replace different containers and adjust different filling amount, so it is very convenient. This filling method keeps the liquid at the same level in each container and can effectively prevent from blistering during filling. It has advantages such as, high automation, reliable performance, simple structure and convenient adjusrment, good adaptability and so on.. It is widely used in food and beverages (such as tea drinks, soy sauce, wine, vinegar), medicine, chemicals, pesticides and in filling a variety of smooth and mobile liquid filling in other industries, especially for liquid(soy sauce) in which easily results.

المؤشرات الفنية الاساسية

ملء النطاق	80-500ml 500-2000ml	Power supply and voltage	AC380V / 50HZ
ملء السرعة	3000-4000bot/h 1500-3000bot/h	وزن	About 600kilo
قوة	≤1.8KW	Applicable bottle shape	bottle diameter: Φ25-Φ120mm Height:100-300mm
دقة ملء	±3 millimetre error of liquid level	البعد	2400×1000×2100mm Length × width × height

تفاصيل سريعة

---

نوع: ملء آلة
حالة: جديدة
Application: food, daily commodity, medicine,etc
نوع التغليف: زجاجات
مواد التعبئة والتغليف: الخشب
الصف التلقائي: التلقائي
مدفوعة نوع: الكهربائية والهوائية
Power: ≤1.8KW
مكان المنشأ: شنغهاي ، الصين (البر الرئيسي)
اسم العلامة التجارية: NPACK

---
